Block whose content is derived from one or more source blocks. More...

#include <Block.h>

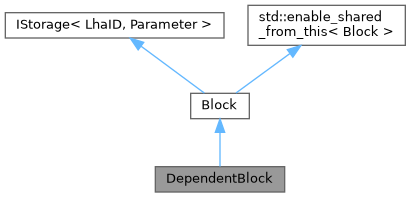

Inheritance diagram for DependentBlock:

[legend]

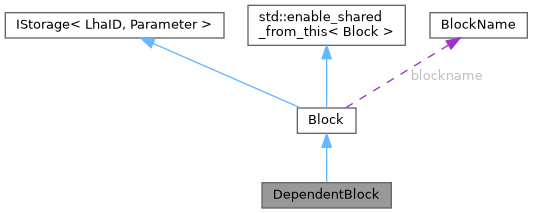

Collaboration diagram for DependentBlock:

[legend]

Public Member Functions
	DependentBlock (const std::unordered_map< std::string, std::shared_ptr< Block > > &sources, DepUpdateFunc recalculateFunc)
	Constructs a dependent block from source blocks and a recomputation callback.

bool	dependsOn (const std::string &blockName)
	Checks whether this dependent block uses a given source block name.

void	init () override
	Initializes the dependency graph for this block.

void	update () override
	Marks the block as dirty.

void	freeze () override
	Freezes the block and all contained parameters.

void	unfreeze () override
	Unfreezes the block and contained parameters.

void	detach ()
	Temporarily detaches this block from its dependency graph.

void	reattach ()
	Reattaches a previously detached dependent block.

	~DependentBlock ()
	Destructor.

void	assign (const LhaID &key, std::shared_ptr< Parameter > param)
	Overwrites the payload of a local parameter without triggering block-level notification.

void	assign (const LhaID &key, double value)
	Assigns a new scalar value to a local parameter.

std::unordered_map< std::string, std::shared_ptr< Block > >	get_source_blocks () const override
	Returns the map of source blocks for this dependent block.

void	clear_above () override
	Clears upstream block dependencies.

void	clear_below () override
	Clears downstream block dependencies.

void	destroy () override
	Destroys this dependent block and its downstream block dependencies.

void	mark_dirty ()
	Marks this block dirty and propagates the dirty state downstream.

void	ensure_up_to_date () override
	Ensures this dependent block is up to date.

Public Member Functions inherited from Block
	Block ()=default
	Default constructor.

	Block (std::shared_ptr< Block > other)
	Copy-like constructor from another block.

BlockName	get_name () const
	Returns the name of the block.

void	store (const LhaID &id, std::shared_ptr< Parameter > param) override
	Stores a new parameter under the given LHA id.

void	assign (const LhaID &key, scalar_t value)
	Sets the expected value of an existing parameter.

void	store_or_assign (const LhaID &key, std::shared_ptr< Parameter > param) override
	Stores a parameter if absent, otherwise assigns into the existing one.

bool	contains (const LhaID &key) const override
	Checks whether the block contains a parameter with the given id.

std::shared_ptr< Parameter >	retrieve (const LhaID &id) override
	Retrieves a stored parameter by id.

void	remove (const LhaID &key) override
	Removes a parameter and clears its downstream dependency subtree.

std::unordered_set< LhaID >	getAllIDs ()
	Returns the set of all parameter ids stored in the block.

const std::map< LhaID, std::shared_ptr< Parameter > > &	getItems ()
	Returns the internal parameter map.

void	set_owner (ParameterType type)
	Sets the owner ParameterType on all contained parameters.

void	addObserver (std::shared_ptr< Block > observer)
	Adds a block observer if not already present.

void	removeObserver (std::shared_ptr< Block > observer)
	Removes a previously registered observer block.

void	notifyObservers ()
	Notifies all observer blocks that this block has changed.

std::vector< std::shared_ptr< Block > >	getObservers () const
	Returns the current list of observer blocks.

void	copy (std::shared_ptr< Block > other)
	Copies the content and metadata from another block.

std::shared_ptr< Block >	deep_clone_plain () const
	Deep-copies this block as a plain independent block.

bool	has_scale ()
	Returns whether the block has an associated scale.

void	set_scale (double scale)
	Sets the block-wide scale.

double	get_scale ()
	Returns the block-wide scale.

void	erase_local (const LhaID &id)
	Erases an entry from the local storage map only.

void	bind_self (std::shared_ptr< Block > self)
	Binds an explicit self shared_ptr to the block.

	~Block ()
	Destructor.

Public Member Functions inherited from IStorage< LhaID, Parameter >
virtual	~IStorage ()=default

Additional Inherited Members
Public Attributes inherited from Block
BlockName	blockname {""}
	Name of the block (e.g. "SMINPUTS", "MASS", "FWCOEF"...)

Protected Member Functions inherited from Block
std::weak_ptr< Block >	self_weak ()
	Optional explicit self-reference used to rebind owner_block on contained parameters.

Protected Attributes inherited from Block
std::vector< std::shared_ptr< Block > >	observers

std::map< LhaID, std::shared_ptr< Parameter > >	items
	List of observing blocks notified through notifyObservers().

std::optional< double >	scale
	Internal storage of parameters indexed by LHA id.

std::weak_ptr< Block >	self_
	Optional block-wide scale.

Detailed Description

Block whose content is derived from one or more source blocks.

A DependentBlock is a lazily recomputed block:

it observes one or more source blocks,
when sources change, it becomes dirty,
actual recomputation is deferred until a read-style access forces it (e.g. retrieve(), contains(), getItems(), getAllIDs()).

The actual recomputation logic is provided by a user callback of type DepUpdateFunc.

Additional features:

freeze/unfreeze support with deferred update,
detach/reattach support to temporarily disable the dependency graph,
recursive dirty propagation to downstream dependent blocks and parameters.

See also: Block; DepUpdateFunc; BlockSrc

Definition at line 481 of file Block.h.

Constructor & Destructor Documentation

◆ DependentBlock()

DependentBlock::DependentBlock	(	const std::unordered_map< std::string, std::shared_ptr< Block > > &	sources,
		DepUpdateFunc	recalculateFunc
	)

inlineexplicit

Constructs a dependent block from source blocks and a recomputation callback.

The constructor only stores the dependency data. Actual observer registration is performed later by init().

Parameters

sources	Source blocks used as inputs.
recalculateFunc	Callback used to rebuild/update this block.

Definition at line 492 of file Block.h.

◆ ~DependentBlock()

DependentBlock::~DependentBlock ( )

Destructor.

Unregisters this dependent block from its source blocks when still attached.

Definition at line 245 of file Block.cpp.

Member Function Documentation

◆ assign() [1/2]

void DependentBlock::assign	(	const LhaID &	key,
		double	value
	)

Assigns a new scalar value to a local parameter.

This is the dependent-block-local variant used during recomputation.

Parameters

key	Identifier to update.
value	New value.

Definition at line 269 of file Block.cpp.

◆ assign() [2/2]

void DependentBlock::assign	(	const LhaID &	key,
		std::shared_ptr< Parameter >	param
	)

virtual

Overwrites the payload of a local parameter without triggering block-level notification.

This is a lighter-weight internal assign than Block::assign(...): the destination parameter payload is overwritten, but this method does not explicitly notify downstream blocks.

Parameters

key	Identifier to overwrite.
param	Source parameter payload.

Reimplemented from Block.

Definition at line 256 of file Block.cpp.

◆ clear_above()

void DependentBlock::clear_above ( )

overridevirtual

Clears upstream block dependencies.

Unregisters this block from all current source blocks.

Reimplemented from Block.

Definition at line 280 of file Block.cpp.

◆ clear_below()

void DependentBlock::clear_below ( )

overridevirtual

Clears downstream block dependencies.

This first detaches from sources, then recursively asks observing blocks to clear their own downstream dependencies.

Reimplemented from Block.

Definition at line 288 of file Block.cpp.

◆ dependsOn()

bool DependentBlock::dependsOn ( const std::string & blockName )

Checks whether this dependent block uses a given source block name.

Parameters

blockName Source block name.

Returns: True if the source exists and is non-null.

Definition at line 299 of file Block.cpp.

◆ destroy()

void DependentBlock::destroy ( )

overridevirtual

Destroys this dependent block and its downstream block dependencies.

Current behavior:

detaches from sources,
clears downstream parameter dependencies,
clears local items,
recursively destroys observing blocks.

Reimplemented from Block.

Definition at line 303 of file Block.cpp.

◆ detach()

void DependentBlock::detach ( )

Temporarily detaches this block from its dependency graph.

Current behavior:

ensures the block is up to date before detaching,
unregisters this block from its source observers,
detaches dependent parameters when applicable,
clears source/recalculation state from the active dependency graph,
preserves a saved copy of the original dependency definition,
notifies downstream observers.

After detachment, the block behaves like a frozen snapshot of its current content.

See also: reattach

Definition at line 320 of file Block.cpp.

◆ ensure_up_to_date()

void DependentBlock::ensure_up_to_date ( )

inlineoverridevirtual

Ensures this dependent block is up to date.

If the block is dirty and not frozen, upstream dependent blocks are first ensured up to date, then the recomputation callback is executed, and finally downstream parameter/block observers are notified in a controlled way.

Reimplemented from Block.

Definition at line 656 of file Block.h.

◆ freeze()

void DependentBlock::freeze ( )

overridevirtual

Freezes the block and all contained parameters.

While frozen, updates are deferred.

Reimplemented from Block.

Definition at line 228 of file Block.cpp.

◆ get_source_blocks()

std::unordered_map< std::string, std::shared_ptr< Block > > DependentBlock::get_source_blocks ( ) const

overridevirtual

Returns the map of source blocks for this dependent block.

Returns: Source block map.

Reimplemented from Block.

Definition at line 276 of file Block.cpp.

◆ init()

void DependentBlock::init ( )

overridevirtual

Initializes the dependency graph for this block.

Registers this block as observer of all current source blocks. Must be called before the dependency graph is expected to function.

Reimplemented from Block.

Definition at line 220 of file Block.cpp.

◆ mark_dirty()

void DependentBlock::mark_dirty ( )

Marks this block dirty and propagates the dirty state downstream.

If the block is already dirty, nothing is done.

Propagation rules:

downstream DependentBlock observers receive mark_dirty(),
downstream dependent parameters are notified through Parameter::notifyParamObserversOnly().

Definition at line 369 of file Block.cpp.

◆ reattach()

void DependentBlock::reattach ( )

Reattaches a previously detached dependent block.

Restores:

source blocks,
recomputation callback,
parameter dependency state,
observer registration to sources.

The block is then marked dirty again so that future accesses recompute from restored sources.

See also: detach

Definition at line 343 of file Block.cpp.

◆ unfreeze()

void DependentBlock::unfreeze ( )

overridevirtual

Unfreezes the block and contained parameters.

If an update was requested while frozen, the block is marked dirty again upon unfreeze.

Reimplemented from Block.

Definition at line 234 of file Block.cpp.

◆ update()

void DependentBlock::update ( )

overridevirtual

Marks the block as dirty.

Current behavior:

if frozen, records that an update must happen upon unfreeze,
otherwise propagates dirtiness downstream using mark_dirty().

This method does not recompute immediately.

Reimplemented from Block.

Definition at line 384 of file Block.cpp.

The documentation for this class was generated from the following files:

/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Block.h
/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Block.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DependentBlock()

◆ ~DependentBlock()

Member Function Documentation

◆ assign() [1/2]

◆ assign() [2/2]

◆ clear_above()

◆ clear_below()

◆ dependsOn()

◆ destroy()

◆ detach()

◆ ensure_up_to_date()

◆ freeze()

◆ get_source_blocks()

◆ init()

◆ mark_dirty()

◆ reattach()

◆ unfreeze()

◆ update()
