Represents a single parameter with value, uncertainties, and dependency links. More...

#include <Parameter.h>

Inheritance diagram for Parameter:

[legend]

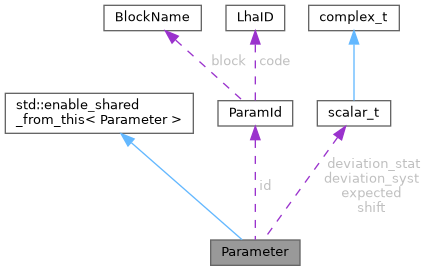

Collaboration diagram for Parameter:

[legend]

Public Member Functions
	Parameter ()
	Default constructor.

	Parameter (ParamId id, scalar_t mean, scalar_t std_stat, scalar_t std_syst)
	Constructs a parameter from its identifier, value, and uncertainties.

	Parameter (const Parameter &other)
	Copy constructor that copies only scalar payload/metadata.

void	set_mode (ParameterMode mode)
	Sets the parameter mode.

void	set_std (scalar_t stat, scalar_t syst)
	Sets the statistical and systematic uncertainties.

void	set_scale (double scale)
	Sets the parameter scale metadata.

void	set_bin (std::pair< double, double > bin)
	Sets the binning metadata of the parameter.

void	set_id (ParamId id)
	Replaces the identifier of the parameter.

virtual scalar_t	get_val () const
	Returns the current value of the parameter.

void	set_expected (scalar_t val)
	Sets the expected value and notifies dependents.

void	set_expected_silent (scalar_t val)
	Sets the expected value without notifying observers.

scalar_t	get_combined_std () const
	Returns the combined standard deviation.

std::pair< scalar_t, scalar_t >	get_std () const
	Returns statistical and systematic uncertainties separately.

double	get_scale ()
	Returns the parameter scale metadata.

std::pair< double, double >	get_bin ()
	Returns the parameter bin metadata.

ParamId	get_id () const
	Returns the identifier of the parameter.

void	set_owner (ParameterType type)
	Changes the owner ParameterType part of the identifier.

void	set_shift (scalar_t shift)
	Sets the additive shift of the parameter.

void	addObserver (std::shared_ptr< Parameter > observer)
	Adds an observer parameter.

void	removeObserver (std::shared_ptr< Parameter > observer)
	Removes an observer parameter.

void	notifyObservers ()
	Notifies downstream parameter observers and then the owner block.

void	notifyParamObserversOnly ()
	Notifies only parameter observers.

virtual void	update ()
	Hook called when an upstream dependency changes.

virtual void	freeze ()
	Hook to freeze the parameter.

virtual void	unfreeze ()
	Hook to unfreeze the parameter.

virtual void	clear_above ()
	Hook to clear upstream dependencies.

virtual void	clear_below ()
	Recursively clears downstream dependencies below this parameter.

virtual std::unordered_map< ParamId, std::shared_ptr< Parameter > >	get_source_parameters () const
	Returns the source parameters this parameter depends on.

void	set_owner_block (std::weak_ptr< Block > owner)
	Sets the owning block of this parameter.

std::weak_ptr< Block >	get_owner_block () const
	Returns the owning block of this parameter.

void	overwrite_payload_from (const Parameter &other)
	Overwrites the numerical/configuration payload from another parameter.

Parameter &	operator= (const Parameter &other)
	Assignment operator.

Parameter &	operator+= (const Parameter &other)
	Adds another parameter payload to this one.

Parameter &	operator*= (const scalar_t &scale)
	Multiplies the parameter by a scalar factor.

virtual	~Parameter ()=default
	Virtual destructor.

Protected Attributes
ParamId	id
	Unique identifier for the parameter.

scalar_t	expected
	Expected value of the parameter.

scalar_t	deviation_stat
	Statistical standard deviation.

scalar_t	deviation_syst
	Systematic standard deviation.

scalar_t	shift
	Additive shift applied when the parameter is SHIFTABLE.

ParameterMode	mode
	Current operating mode.

std::vector< std::shared_ptr< Parameter > >	observers
	Observers notified when this parameter changes.

std::weak_ptr< Block >	owner_block
	Owning Block (if any) that this parameter belongs to.

std::optional< double >	scale
	Optional renormalization scale associated with the parameter.

std::optional< std::pair< double, double > >	binning
	Optional energy bin [low, high] associated with the parameter.

Friends
std::ostream &	operator<< (std::ostream &os, const Parameter &p)
	Stream output operator for a parameter.

Detailed Description

Represents a single parameter with value, uncertainties, and dependency links.

This is the fundamental data container for model, flavor, observable, and Wilson parameters.

A Parameter stores:

its identifier (ParamId),
its expected value,
statistical and systematic standard deviations,
an optional additive shift,
optional metadata (scale, bin),
a list of observer parameters,
and optionally the block that owns it.

Notification model:

when the parameter changes, it can notify downstream parameter observers,
if attached to a block, it can also trigger block-level observer propagation through the owning block.

Read model:

get_val() first ensures that the owning block (if any) is up to date, so accessing a parameter transparently triggers lazy recomputation of dependent blocks when needed.

See also: Block; ParameterMode

Definition at line 78 of file Parameter.h.

Constructor & Destructor Documentation

◆ Parameter() [1/3]

Parameter::Parameter ( )

inline

Default constructor.

Creates a neutral parameter:

id = (SM, "NullBlock", 0)
expected = 0
zero uncertainties
zero shift
mode = FIXED

Definition at line 102 of file Parameter.h.

◆ Parameter() [2/3]

Parameter::Parameter	(	ParamId	id,
		scalar_t	mean,
		scalar_t	std_stat,
		scalar_t	std_syst
	)

Constructs a parameter from its identifier, value, and uncertainties.

The shift is initialized to zero and the mode to ParameterMode::FIXED.

Parameters

id	Unique identifier of the parameter.
mean	Central value.
std_stat	Statistical uncertainty.
std_syst	Systematic uncertainty.

Definition at line 6 of file Parameter.cpp.

◆ Parameter() [3/3]

Parameter::Parameter ( const Parameter & other )

Copy constructor that copies only scalar payload/metadata.

Observer links and owning block are intentionally not copied so deep clones can be rebound to their new local blocks safely.

Definition at line 10 of file Parameter.cpp.

◆ ~Parameter()

virtual Parameter::~Parameter ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ addObserver()

void Parameter::addObserver ( std::shared_ptr< Parameter > observer )

Adds an observer parameter.

Observers are stored uniquely by pointer identity.

Parameters

observer Downstream observer parameter.

Definition at line 89 of file Parameter.cpp.

◆ clear_above()

virtual void Parameter::clear_above ( )

inlinevirtual

Hook to clear upstream dependencies.

Base implementation does nothing. Derived classes may override this to detach from source parameters.

Reimplemented in DependentParameter.

Definition at line 336 of file Parameter.h.

◆ clear_below()

void Parameter::clear_below ( )

virtual

Recursively clears downstream dependencies below this parameter.

Current behavior:

takes ownership of the current observer list,
clears the local observer list,
calls clear_above() on this parameter,
recursively calls clear_below() on each former observer.

This is used to tear down or invalidate a parameter dependency subtree.

Reimplemented in DependentParameter.

Definition at line 95 of file Parameter.cpp.

◆ freeze()

virtual void Parameter::freeze ( )

inlinevirtual

Hook to freeze the parameter.

Base implementation does nothing. Derived classes may override this if they support explicit freezing.

Reimplemented in DependentParameter.

Definition at line 321 of file Parameter.h.

◆ get_bin()

std::pair< double, double > Parameter::get_bin ( )

Returns the parameter bin metadata.

If no bin has been assigned, returns (-1.0, -1.0).

Returns: Bin interval, or sentinel pair if undefined.

Definition at line 68 of file Parameter.cpp.

◆ get_combined_std()

scalar_t Parameter::get_combined_std ( ) const

Returns the combined standard deviation.

The combined uncertainty is computed as:

$\sqrt{\sigma_{\mathrm{stat}}^2 + \sigma_{\mathrm{syst}}^2}$

Returns: Combined uncertainty.

Definition at line 55 of file Parameter.cpp.

◆ get_id()

ParamId Parameter::get_id ( ) const

Returns the identifier of the parameter.

Returns: Parameter id.

Definition at line 72 of file Parameter.cpp.

◆ get_owner_block()

std::weak_ptr< Block > Parameter::get_owner_block ( ) const

Returns the owning block of this parameter.

Returns: Weak pointer to the owning block.

Definition at line 112 of file Parameter.cpp.

◆ get_scale()

double Parameter::get_scale ( )

Returns the parameter scale metadata.

If no scale has been assigned, returns -1.0.

Returns: Scale value, or -1.0 if undefined.

Definition at line 64 of file Parameter.cpp.

◆ get_source_parameters()

std::unordered_map< ParamId, std::shared_ptr< Parameter > > Parameter::get_source_parameters ( ) const

virtual

Returns the source parameters this parameter depends on.

A plain Parameter has no explicit upstream parameter sources, so the default implementation returns an empty map.

Derived classes such as computed/dependent parameters should override this.

Returns: Map of source ParamId -> Parameter.

Reimplemented in DependentParameter.

Definition at line 106 of file Parameter.cpp.

◆ get_std()

std::pair< scalar_t, scalar_t > Parameter::get_std ( ) const

Returns statistical and systematic uncertainties separately.

Returns: Pair (stat, syst).

Definition at line 60 of file Parameter.cpp.

◆ get_val()

scalar_t Parameter::get_val ( ) const

virtual

Returns the current value of the parameter.

Behavior:

if the parameter belongs to a block, the owning block is first asked to ensure_up_to_date(),
then the returned value is:
- expected if mode is ParameterMode::FIXED,
- expected + shift if mode is ParameterMode::SHIFTABLE.

Returns: Current parameter value.

Reimplemented in DependentParameter.

Definition at line 34 of file Parameter.cpp.

◆ notifyObservers()

void Parameter::notifyObservers ( )

Notifies downstream parameter observers and then the owner block.

Current behavior:

first calls notifyParamObserversOnly(),
then, if an owning block exists, calls owner_block->notifyObservers().

This is the standard propagation entry point after a value-changing operation.

Definition at line 146 of file Parameter.cpp.

◆ notifyParamObserversOnly()

void Parameter::notifyParamObserversOnly ( )

Notifies only parameter observers.

This method:

calls update() on each non-null observer parameter,
removes null observer entries,
does not notify the owning block.

This is useful when propagating parameter-level dirtiness without re-triggering block-level cascades multiple times.

Definition at line 137 of file Parameter.cpp.

◆ operator*=()

Parameter & Parameter::operator*= ( const scalar_t & scale )

Multiplies the parameter by a scalar factor.

Update rules:

expected value is scaled by factor,
uncertainties are scaled by abs(factor),
shift is scaled by factor.

Metadata and observer relationships are unchanged.

Parameters

scale Multiplicative factor.

Returns: Reference to this parameter.

Definition at line 177 of file Parameter.cpp.

◆ operator+=()

Parameter & Parameter::operator+= ( const Parameter & other )

Adds another parameter payload to this one.

Update rules:

expected values are summed,
statistical/systematic uncertainties are combined in quadrature,
shifts are summed.

Identifier, mode, metadata, and observer relationships are unchanged.

Parameters

other Parameter to add.

Returns: Reference to this parameter.

Definition at line 169 of file Parameter.cpp.

◆ operator=()

Parameter & Parameter::operator= ( const Parameter & other )

Assignment operator.

Copies:

identifier
expected value
uncertainties
mode
shift
scale
binning

Does not copy:

observer list
owning block

Parameters

other Source parameter.

Returns: Reference to this parameter.

Definition at line 115 of file Parameter.cpp.

◆ overwrite_payload_from()

void Parameter::overwrite_payload_from ( const Parameter & other )

Overwrites the numerical/configuration payload from another parameter.

Copied fields:

expected value
statistical uncertainty
systematic uncertainty
shift
mode
scale
binning

Preserved fields:

identifier
observers
owning block

Parameters

other Source parameter payload.

Definition at line 127 of file Parameter.cpp.

◆ removeObserver()

void Parameter::removeObserver ( std::shared_ptr< Parameter > observer )

Removes an observer parameter.

Removal is performed by pointer identity.

Parameters

observer Observer to remove.

Definition at line 153 of file Parameter.cpp.

◆ set_bin()

void Parameter::set_bin ( std::pair< double, double > bin )

Sets the binning metadata of the parameter.

Parameters

bin	Bin interval as `(low, high)`.

Definition at line 30 of file Parameter.cpp.

◆ set_expected()

void Parameter::set_expected ( scalar_t val )

Sets the expected value and notifies dependents.

This updates the central value, then calls notifyObservers().

Parameters

val	New expected value.

Definition at line 41 of file Parameter.cpp.

◆ set_expected_silent()

void Parameter::set_expected_silent ( scalar_t val )

Sets the expected value without notifying observers.

This is intended for internal/batched updates where propagation is handled separately.

Warning: This can leave dependents stale until notifications are manually triggered.

Parameters

val	New expected value.

Definition at line 47 of file Parameter.cpp.

◆ set_id()

void Parameter::set_id ( ParamId id )

Replaces the identifier of the parameter.

Parameters

id	New identifier.

Definition at line 51 of file Parameter.cpp.

◆ set_mode()

void Parameter::set_mode ( ParameterMode mode )

Sets the parameter mode.

This does not trigger notifications by itself.

Parameters

mode	New mode to assign.

Definition at line 15 of file Parameter.cpp.

◆ set_owner()

void Parameter::set_owner ( ParameterType type )

Changes the owner ParameterType part of the identifier.

This is typically used when re-tagging a parameter as SM, BSM, WILSON, etc.

Parameters

type	New owner type.

Definition at line 77 of file Parameter.cpp.

◆ set_owner_block()

void Parameter::set_owner_block ( std::weak_ptr< Block > owner )

Sets the owning block of this parameter.

Parameters

owner Weak pointer to the owning block.

Definition at line 110 of file Parameter.cpp.

◆ set_scale()

void Parameter::set_scale ( double scale )

Sets the parameter scale metadata.

This is purely metadata storage; no notification is emitted.

Parameters

scale Scale value.

Definition at line 26 of file Parameter.cpp.

◆ set_shift()

void Parameter::set_shift ( scalar_t shift )

Sets the additive shift of the parameter.

This is only allowed if the parameter is in ParameterMode::SHIFTABLE mode.

Parameters

shift New shift value.

Exceptions

std::runtime_error if called while the parameter is FIXED.

Definition at line 81 of file Parameter.cpp.

◆ set_std()

void Parameter::set_std	(	scalar_t	stat,
		scalar_t	syst
	)

Sets the statistical and systematic uncertainties.

Parameters

stat	Statistical standard deviation.
syst	Systematic standard deviation.

Definition at line 21 of file Parameter.cpp.

◆ unfreeze()

virtual void Parameter::unfreeze ( )

inlinevirtual

Hook to unfreeze the parameter.

Base implementation does nothing.

Reimplemented in DependentParameter.

Definition at line 328 of file Parameter.h.

◆ update()

virtual void Parameter::update ( )

inlinevirtual

Hook called when an upstream dependency changes.

Base implementation does nothing. Derived classes may override this to recompute internal state.

Reimplemented in DependentParameter.

Definition at line 313 of file Parameter.h.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		const Parameter &	p
	)

friend

Stream output operator for a parameter.

Prints a compact human-readable representation including block/code, optional binning, central value, and uncertainties.

Parameters

os	Output stream.
p	Parameter to print.

Returns: Output stream.

Definition at line 159 of file Parameter.cpp.

Member Data Documentation

◆ binning

std::optional<std::pair<double, double> > Parameter::binning

protected

Optional energy bin [low, high] associated with the parameter.

Definition at line 89 of file Parameter.h.

◆ deviation_stat

scalar_t Parameter::deviation_stat

protected

Statistical standard deviation.

Definition at line 82 of file Parameter.h.

◆ deviation_syst

scalar_t Parameter::deviation_syst

protected

Systematic standard deviation.

Definition at line 83 of file Parameter.h.

◆ expected

scalar_t Parameter::expected

protected

Expected value of the parameter.

Definition at line 81 of file Parameter.h.

◆ id

ParamId Parameter::id

protected

Unique identifier for the parameter.

Definition at line 80 of file Parameter.h.

◆ mode

ParameterMode Parameter::mode

protected

Current operating mode.

Definition at line 85 of file Parameter.h.

◆ observers

std::vector<std::shared_ptr<Parameter> > Parameter::observers

protected

Observers notified when this parameter changes.

Definition at line 86 of file Parameter.h.

◆ owner_block

std::weak_ptr<Block> Parameter::owner_block

protected

Owning Block (if any) that this parameter belongs to.

Definition at line 87 of file Parameter.h.

◆ scale

std::optional<double> Parameter::scale

protected

Optional renormalization scale associated with the parameter.

Definition at line 88 of file Parameter.h.

◆ shift

scalar_t Parameter::shift

protected

Additive shift applied when the parameter is SHIFTABLE.

Definition at line 84 of file Parameter.h.

The documentation for this class was generated from the following files:

/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Parameter.h
/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Parameter.cpp

Public Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Parameter() [1/3]

◆ Parameter() [2/3]

◆ Parameter() [3/3]

◆ ~Parameter()

Member Function Documentation

◆ addObserver()

◆ clear_above()

◆ clear_below()

◆ freeze()

◆ get_bin()

◆ get_combined_std()

◆ get_id()

◆ get_owner_block()

◆ get_scale()

◆ get_source_parameters()

◆ get_std()

◆ get_val()

◆ notifyObservers()

◆ notifyParamObserversOnly()

◆ operator*=()

◆ operator+=()

◆ operator=()

◆ overwrite_payload_from()

◆ removeObserver()

◆ set_bin()

◆ set_expected()

◆ set_expected_silent()

◆ set_id()

◆ set_mode()

◆ set_owner()

◆ set_owner_block()

◆ set_scale()

◆ set_shift()

◆ set_std()

◆ unfreeze()

◆ update()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ binning

◆ deviation_stat

◆ deviation_syst

◆ expected

◆ id

◆ mode

◆ observers

◆ owner_block

◆ scale

◆ shift
