#include <Block.h>

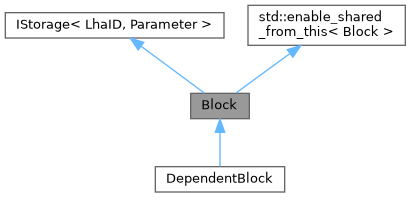

Inheritance diagram for Block:

[legend]

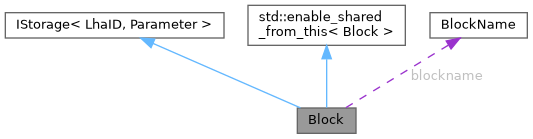

Collaboration diagram for Block:

[legend]

Public Member Functions
	Block ()=default
	Default constructor.

	Block (std::shared_ptr< Block > other)
	Copy-like constructor from another block.

BlockName	get_name () const
	Returns the name of the block.

void	store (const LhaID &id, std::shared_ptr< Parameter > param) override
	Stores a new parameter under the given LHA id.

void	assign (const LhaID &key, std::shared_ptr< Parameter > param) override
	Replaces the payload of an existing parameter from another parameter object.

void	assign (const LhaID &key, scalar_t value)
	Sets the expected value of an existing parameter.

void	store_or_assign (const LhaID &key, std::shared_ptr< Parameter > param) override
	Stores a parameter if absent, otherwise assigns into the existing one.

bool	contains (const LhaID &key) const override
	Checks whether the block contains a parameter with the given id.

std::shared_ptr< Parameter >	retrieve (const LhaID &id) override
	Retrieves a stored parameter by id.

void	remove (const LhaID &key) override
	Removes a parameter and clears its downstream dependency subtree.

std::unordered_set< LhaID >	getAllIDs ()
	Returns the set of all parameter ids stored in the block.

const std::map< LhaID, std::shared_ptr< Parameter > > &	getItems ()
	Returns the internal parameter map.

void	set_owner (ParameterType type)
	Sets the owner ParameterType on all contained parameters.

void	addObserver (std::shared_ptr< Block > observer)
	Adds a block observer if not already present.

void	removeObserver (std::shared_ptr< Block > observer)
	Removes a previously registered observer block.

void	notifyObservers ()
	Notifies all observer blocks that this block has changed.

std::vector< std::shared_ptr< Block > >	getObservers () const
	Returns the current list of observer blocks.

virtual void	init ()
	Initialization hook.

virtual void	update ()
	Updates the block.

virtual void	destroy ()
	Destroys the block and its downstream block dependencies.

virtual void	freeze ()
	Freezes all parameters contained in the block.

virtual void	unfreeze ()
	Unfreezes all parameters contained in the block.

void	copy (std::shared_ptr< Block > other)
	Copies the content and metadata from another block.

std::shared_ptr< Block >	deep_clone_plain () const
	Deep-copies this block as a plain independent block.

virtual void	clear_above ()
	Clears parameter dependencies above this block.

virtual void	clear_below ()
	Clears parameter dependencies below this block.

bool	has_scale ()
	Returns whether the block has an associated scale.

void	set_scale (double scale)
	Sets the block-wide scale.

double	get_scale ()
	Returns the block-wide scale.

void	erase_local (const LhaID &id)
	Erases an entry from the local storage map only.

virtual std::unordered_map< std::string, std::shared_ptr< Block > >	get_source_blocks () const
	Returns the source blocks of this block.

virtual void	ensure_up_to_date ()
	Ensures that the block content is up to date.

void	bind_self (std::shared_ptr< Block > self)
	Binds an explicit self shared_ptr to the block.

	~Block ()
	Destructor.

Public Member Functions inherited from IStorage< LhaID, Parameter >
virtual	~IStorage ()=default

Public Attributes
BlockName	blockname {""}
	Name of the block (e.g. "SMINPUTS", "MASS", "FWCOEF"...)

Protected Member Functions
std::weak_ptr< Block >	self_weak ()
	Optional explicit self-reference used to rebind owner_block on contained parameters.

Protected Attributes
std::vector< std::shared_ptr< Block > >	observers

std::map< LhaID, std::shared_ptr< Parameter > >	items
	List of observing blocks notified through notifyObservers().

std::optional< double >	scale
	Internal storage of parameters indexed by LHA id.

std::weak_ptr< Block >	self_
	Optional block-wide scale.

Friends
std::ostream &	operator<< (std::ostream &, std::shared_ptr< Block >)
	Stream output operator for a block.

Detailed Description

Definition at line 73 of file Block.h.

Constructor & Destructor Documentation

◆ Block() [1/2]

Block::Block ( )

default

Default constructor.

Constructs an empty block with no parameters, no observers, and no scale.

◆ Block() [2/2]

Block::Block ( std::shared_ptr< Block > other )

Copy-like constructor from another block.

This constructor copies the content and metadata of other by delegating to copy(). Stored parameter pointers are copied as shared pointers.

After the copy, parameter owner-block links are rebound to this new block whenever a valid self reference is available.

Parameters

other Block to copy from.

Definition at line 50 of file Block.cpp.

◆ ~Block()

Block::~Block ( )

inline

Destructor.

The destructor itself does not perform dependency teardown. Use destroy() when graph-level destruction is required.

Definition at line 419 of file Block.h.

Member Function Documentation

◆ addObserver()

void Block::addObserver ( std::shared_ptr< Block > observer )

Adds a block observer if not already present.

Observer uniqueness is checked by pointer identity.

Parameters

observer Observer block to add.

Definition at line 4 of file Block.cpp.

◆ assign() [1/2]

void Block::assign	(	const LhaID &	key,
		scalar_t	value
	)

Sets the expected value of an existing parameter.

This calls Parameter::set_expected(value) on the stored parameter.

Current notification behavior:

notifications are delegated to the parameter layer,
no extra explicit Block::notifyObservers() is triggered here.

Parameters

key	Identifier of the parameter to update.
value	New value.

Definition at line 90 of file Block.cpp.

◆ assign() [2/2]

void Block::assign	(	const LhaID &	key,
		std::shared_ptr< Parameter >	param
	)

overridevirtual

Replaces the payload of an existing parameter from another parameter object.

This does not replace the shared pointer stored in the block. Instead, it copies the numerical/configuration payload into the already stored destination parameter using Parameter::overwrite_payload_from(...).

Current notification behavior:

the destination parameter notifies its own observers,
block-level observers are reached indirectly through the parameter/owner-block chain,
no extra explicit Block::notifyObservers() call is performed here.

Parameters

key	Identifier of the parameter to overwrite.
param	Source parameter whose payload is copied.

Implements IStorage< LhaID, Parameter >.

Reimplemented in DependentBlock.

Definition at line 79 of file Block.cpp.

◆ bind_self()

void Block::bind_self ( std::shared_ptr< Block > self )

inline

Binds an explicit self shared_ptr to the block.

This is used to make owner-block links available even in situations where shared_from_this() is not yet safe or convenient.

After binding, all currently stored parameters are rebound to this block as their owner block.

Parameters

self	Shared pointer referring to this block instance.

Definition at line 404 of file Block.h.

◆ clear_above()

void Block::clear_above ( )

virtual

Clears parameter dependencies above this block.

Delegates clear_above() to all contained parameters.

Reimplemented in DependentBlock.

Definition at line 170 of file Block.cpp.

◆ clear_below()

void Block::clear_below ( )

virtual

Clears parameter dependencies below this block.

A snapshot of current parameter pointers is built first to avoid iterator invalidation during recursive dependency clearing.

Reimplemented in DependentBlock.

Definition at line 176 of file Block.cpp.

◆ contains()

bool Block::contains ( const LhaID & key ) const

overridevirtual

Checks whether the block contains a parameter with the given id.

Before the lookup, the block is forced up-to-date through ensure_up_to_date(). For a plain Block this is a no-op, but for DependentBlock this may trigger lazy recomputation.

Parameters

key	LHA identifier.

Returns: True if the parameter exists.

Implements IStorage< LhaID, Parameter >.

Definition at line 106 of file Block.cpp.

◆ copy()

void Block::copy ( std::shared_ptr< Block > other )

Copies the content and metadata from another block.

Copied elements:

storage map,
block name,
scale if present.

Stored parameter pointers are copied as shared pointers. If this block is already self-bound, copied parameters have their owner-block link rebound to this block.

Parameters

other Source block.

Definition at line 142 of file Block.cpp.

◆ deep_clone_plain()

std::shared_ptr< Block > Block::deep_clone_plain ( ) const

Deep-copies this block as a plain independent block.

All contained Parameter payloads are duplicated, observer links and owner-block links are not shared with the source block. Dependency graph objects are intentionally not cloned here; dependent blocks are rebuilt by the owning Parameters strategy inside each runtime context.

Definition at line 153 of file Block.cpp.

◆ destroy()

void Block::destroy ( )

virtual

Destroys the block and its downstream block dependencies.

Current behavior:

snapshots and detaches block observers,
clears parameter-side downstream dependencies,
clears local storage,
recursively destroys dependent observer blocks.

Note: This is explicit graph teardown logic; it is not automatically called by the destructor.

Reimplemented in DependentBlock.

Definition at line 205 of file Block.cpp.

◆ ensure_up_to_date()

virtual void Block::ensure_up_to_date ( )

inlinevirtual

Ensures that the block content is up to date.

For a plain Block this is a no-op. DependentBlock overrides it to implement lazy recomputation.

Reimplemented in DependentBlock.

Definition at line 391 of file Block.h.

◆ erase_local()

void Block::erase_local ( const LhaID & id )

Erases an entry from the local storage map only.

Unlike remove(), this does not clear any dependency relationships and does not destroy downstream blocks. It is a pure local erase.

Parameters

id	Identifier to erase.

Definition at line 75 of file Block.cpp.

◆ freeze()

void Block::freeze ( )

virtual

Freezes all parameters contained in the block.

This delegates to Parameter::freeze() on each stored parameter.

Reimplemented in DependentBlock.

Definition at line 38 of file Block.cpp.

◆ get_name()

BlockName Block::get_name ( ) const

inline

Returns the name of the block.

Returns: Block name.

Definition at line 102 of file Block.h.

◆ get_scale()

double Block::get_scale ( )

Returns the block-wide scale.

Returns: The scale value.

Note: Accessing an unset scale is considered a logic error.

Definition at line 198 of file Block.cpp.

◆ get_source_blocks()

std::unordered_map< std::string, std::shared_ptr< Block > > Block::get_source_blocks ( ) const

virtual

Returns the source blocks of this block.

Plain blocks have no source blocks, so the default implementation returns an empty map.

Returns: Source block map.

Reimplemented in DependentBlock.

Definition at line 216 of file Block.cpp.

◆ getAllIDs()

std::unordered_set< LhaID > Block::getAllIDs ( )

Returns the set of all parameter ids stored in the block.

The block is ensured up-to-date before extracting the ids.

Returns: Set of stored ids.

Definition at line 132 of file Block.cpp.

◆ getItems()

const std::map< LhaID, std::shared_ptr< Parameter > > & Block::getItems ( )

Returns the internal parameter map.

The block is ensured up-to-date before returning the map.

Returns: Const reference to the internal storage map.

Definition at line 137 of file Block.cpp.

◆ getObservers()

std::vector< std::shared_ptr< Block > > Block::getObservers ( ) const

Returns the current list of observer blocks.

Returns: Observer list.

Definition at line 27 of file Block.cpp.

◆ has_scale()

bool Block::has_scale ( )

Returns whether the block has an associated scale.

Returns: True if a scale is set.

Definition at line 187 of file Block.cpp.

◆ init()

virtual void Block::init ( )

inlinevirtual

Initialization hook.

Plain blocks do nothing by default. Derived classes may override this to register dependencies or pre-fill content.

Reimplemented in DependentBlock.

Definition at line 262 of file Block.h.

◆ notifyObservers()

void Block::notifyObservers ( )

Notifies all observer blocks that this block has changed.

For each non-null observer, observer->update() is called. Null observer entries are cleaned afterward.

Definition at line 17 of file Block.cpp.

◆ remove()

void Block::remove ( const LhaID & key )

overridevirtual

Removes a parameter and clears its downstream dependency subtree.

The parameter is first asked to clear its own downstream dependencies via Parameter::clear_below(), then removed from the block.

After that, all observer blocks currently attached to this block are destroyed recursively.

Parameters

key	Identifier of the parameter to remove.

Implements IStorage< LhaID, Parameter >.

Definition at line 113 of file Block.cpp.

◆ removeObserver()

void Block::removeObserver ( std::shared_ptr< Block > observer )

Removes a previously registered observer block.

Removal is performed by pointer identity.

Parameters

observer Observer block to remove.

Definition at line 11 of file Block.cpp.

◆ retrieve()

std::shared_ptr< Parameter > Block::retrieve ( const LhaID & id )

overridevirtual

Retrieves a stored parameter by id.

The block is first ensured up-to-date. If the id is missing, an error is logged.

Parameters

id	LHA identifier to retrieve.

Returns: Shared pointer to the stored parameter.

Implements IStorage< LhaID, Parameter >.

Definition at line 54 of file Block.cpp.

◆ self_weak()

std::weak_ptr< Block > Block::self_weak ( )

inlineprotected

Optional explicit self-reference used to rebind owner_block on contained parameters.

Returns the best available weak self-reference.

Priority:

explicit binding through bind_self(),
fallback to shared_from_this() when available,
empty weak_ptr otherwise.

Returns: Weak self-reference.

Definition at line 453 of file Block.h.

◆ set_owner()

void Block::set_owner ( ParameterType type )

Sets the owner ParameterType on all contained parameters.

This is forwarded to each stored parameter via Parameter::set_owner(type).

Parameters

type	Owner type to apply.

Definition at line 126 of file Block.cpp.

◆ set_scale()

void Block::set_scale ( double scale )

Sets the block-wide scale.

Parameters

scale Scale to assign.

Note: Setting the scale twice is considered a logic error.

Definition at line 191 of file Block.cpp.

◆ store()

void Block::store	(	const LhaID &	id,
		std::shared_ptr< Parameter >	param
	)

overridevirtual

Stores a new parameter under the given LHA id.

If the key already exists, the parameter is not overwritten and a debug message is emitted.

If the block has been bound to itself through bind_self(), the stored parameter receives this block as owner block.

Parameters

id	LHA identifier of the parameter.
param	Parameter object to store.

Implements IStorage< LhaID, Parameter >.

Definition at line 64 of file Block.cpp.

◆ store_or_assign()

void Block::store_or_assign	(	const LhaID &	key,
		std::shared_ptr< Parameter >	param
	)

overridevirtual

Stores a parameter if absent, otherwise assigns into the existing one.

This is a convenience method:

calls store() if the key is not present,
calls assign(const LhaID&, std::shared_ptr<Parameter>) otherwise.

Parameters

key	Identifier of the parameter.
param	Parameter to store or assign.

Implements IStorage< LhaID, Parameter >.

Definition at line 98 of file Block.cpp.

◆ unfreeze()

void Block::unfreeze ( )

virtual

Unfreezes all parameters contained in the block.

This delegates to Parameter::unfreeze() on each stored parameter.

Reimplemented in DependentBlock.

Definition at line 44 of file Block.cpp.

◆ update()

void Block::update ( )

virtual

Updates the block.

Default behavior: calls update() on every contained parameter.

For plain blocks this is an eager propagation method. Dependent blocks override this with lazy dirty-marking semantics.

Reimplemented in DependentBlock.

Definition at line 31 of file Block.cpp.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	os,
		std::shared_ptr< Block >	ba
	)

friend

Stream output operator for a block.

Prints block content in a human-readable form:

Block MASS:
    6: 172.5
    24: 80.379

Parameters

os	Output stream.
ba	Block to print.

Returns: Output stream.

Definition at line 413 of file Block.cpp.

Member Data Documentation

◆ blockname

BlockName Block::blockname {""}

Name of the block (e.g. "SMINPUTS", "MASS", "FWCOEF"...)

Definition at line 76 of file Block.h.

◆ items

std::map<LhaID, std::shared_ptr<Parameter> > Block::items

protected

List of observing blocks notified through notifyObservers().

Definition at line 438 of file Block.h.

◆ observers

std::vector<std::shared_ptr<Block> > Block::observers

protected

Definition at line 437 of file Block.h.

◆ scale

std::optional<double> Block::scale

protected

Internal storage of parameters indexed by LHA id.

Definition at line 439 of file Block.h.

◆ self_

std::weak_ptr<Block> Block::self_

protected

Optional block-wide scale.

Definition at line 441 of file Block.h.

The documentation for this class was generated from the following files:

/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Block.h
/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/Core/domain/Block.cpp

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Block() [1/2]

◆ Block() [2/2]

◆ ~Block()

Member Function Documentation

◆ addObserver()

◆ assign() [1/2]

◆ assign() [2/2]

◆ bind_self()

◆ clear_above()

◆ clear_below()

◆ contains()

◆ copy()

◆ deep_clone_plain()

◆ destroy()

◆ ensure_up_to_date()

◆ erase_local()

◆ freeze()

◆ get_name()

◆ get_scale()

◆ get_source_blocks()

◆ getAllIDs()

◆ getItems()

◆ getObservers()

◆ has_scale()

◆ init()

◆ notifyObservers()

◆ remove()

◆ removeObserver()

◆ retrieve()

◆ self_weak()

◆ set_owner()

◆ set_scale()

◆ store()

◆ store_or_assign()

◆ unfreeze()

◆ update()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ blockname

◆ items

◆ observers

◆ scale

◆ self_
