Decay parent for the exclusive B > K* l+ l- decays. Implements the integrated branching ratio and angular observables in several q² bins, as well as the forward-backward asymmetry of the decay. More...

#include <BKstarGammaDecay.h>

Inheritance diagram for BKstarGammaDecay:

[legend]

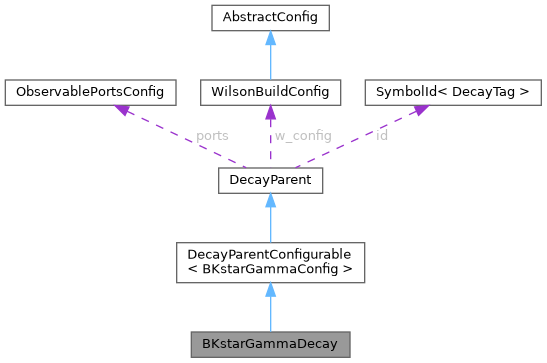

Collaboration diagram for BKstarGammaDecay:

[legend]

Public Member Functions
	BKstarGammaDecay (QCDOrder order, double matching_scale, double hadronic_scale, ObservablePortsConfig &ports)

void	load_params () override
	Load and cache parameters needed by this decay.

std::vector< ObservableValue >	compute_observable (Observables obs) override
	Compute an observable given a public observable enum.

std::vector< ObservableValue >	compute_observable (ObservableId obs) override
	Compute an observable given an internal observable identifier.

void	set_config_spe (BKstarGammaConfig config) override
	Strongly-typed configuration setter to implement in derived classes.

std::any	get_config () const override
	Return the current decay configuration when the decay has one.

Public Member Functions inherited from DecayParentConfigurable< BKstarGammaConfig >
	DecayParentConfigurable (DecayId id, double matching_scale, double hadronic_scale, QCDOrder order, ObservablePortsConfig &ports)
	Construct a configurable decay module.

void	set_config (std::any cfg) final override
	Type-erased config setter (final).

Public Member Functions inherited from DecayParent
virtual	~DecayParent ()=default

	DecayParent (DecayId custom_id, double matching_scale, double hadronic_scale, QCDOrder order, ObservablePortsConfig &ports)
	Construct a decay module and bind it to the observable ports.

void	bind_wilson_builder (std::shared_ptr< IObsWilsonBuilder > &wilson_builder)
	Bind a Wilson builder to this decay.

void	enable ()
	Enable the decay module (build Wilson groups and load parameters).

void	disable ()
	Disable the decay module.

void	set_order (QCDOrder new_order)
	Set the QCD order for this decay (one-shot policy).

virtual void	set_n_threads (size_t n_threads)
	Set the number of worker threads used by decays that support parallel cache filling.

virtual size_t	get_n_threads () const
	Return the currently configured worker-thread count.

virtual bool	supports_thread_config () const
	Whether this decay supports runtime thread configuration.

void	set_bins (std::vector< std::pair< double, double > > new_bins)
	Set the binning for the observables related to this decay.

void	add_bin (std::pair< double, double > new_bin)
	Adds a bin to the observables related to this decay.

std::optional< std::vector< std::pair< double, double > > >	get_bins ()
	Returns the current binning of the decay.

DecayId	get_id ()
	Return the decay identifier.

QCDOrder	get_order () const
	Return the currently configured QCD order for this decay.

bool	is_enabled () const
	Return whether the decay has already been enabled.

bool	is_binned () const
	Return whether this decay has at least one observable requiring q² bins.

virtual bool	is_observable_binned (ObservableId) const
	Return whether one observable of this decay requires q² bins.

virtual bool	is_observable_binned (Observables obs) const
	Convenience overload for public observable enum ids.

Protected Member Functions
void	fill_wilson_cache ()

void	load_cfg_dependent_params ()

void	set_cfg_flags (BKstarGammaConfig::B_Charge charge)

complex_t	H_V (double sign, bool bar)

complex_t	K1 ()

complex_t	K2 (int q)

double	BR ()

double	delta_0 ()

Protected Member Functions inherited from DecayParent
QCDOrder	check_max_order (QCDOrder order) const
	Clamp a requested QCD order to this decay's supported maximum.

Additional Inherited Members
Protected Attributes inherited from DecayParent
QCDOrder	max_order = QCDOrder::LO
	Maximum QCD order supported by this decay module (default: LO).

ObservablePortsConfig &	ports
	Reference to the ports/configuration wiring this decay to the framework.

std::shared_ptr< IObsWilsonBuilder >	w_builder
	Wilson builder used to build/add Wilson groups for this decay.

std::shared_ptr< IObsWilsonProxy >	w_proxy
	Wilson proxy used at compute-time to query coefficients (matching/run).

std::shared_ptr< IObsCoreAPI< bool > >	use_marty
	Port exposing whether the MARTY backend is active.

std::shared_ptr< IObsParameterProxy< ParamId, DataType, std::string, LhaID > >	p
	Parameter proxy for SM-like quantities used by the decay (may be SM/BSM depending on wiring).

std::shared_ptr< IObsQCDProxy >	iobs_qcdp
	QCD proxy (alpha_s, running masses, constants...).

std::shared_ptr< IWilsonFreezer< WGroupId > >	iobs_wfreezer
	Freezer to freeze/unfreeze Wilson blocks when they are not needed by active decays.

std::shared_ptr< ObsWilsonHelper >	w_helper
	Per-manager Wilson lifecycle helper.

WilsonBuildConfig	w_config {}
	Wilson build configuration used when enabling this decay (scales, order, groups).

bool	enabled {false}
	Whether the decay is enabled (i.e. Wilson groups built and parameters loaded).

bool	binned {false}
	Whether this decay requires q² bins before its observables can be computed.

DecayId	id
	Unique decay identifier.

std::optional< std::vector< std::pair< double, double > > >	bins
	Optional q^2 bins.

Detailed Description

Decay parent for the exclusive B > K* l+ l- decays. Implements the integrated branching ratio and angular observables in several q² bins, as well as the forward-backward asymmetry of the decay.

Definition at line 44 of file BKstarGammaDecay.h.

Constructor & Destructor Documentation

◆ BKstarGammaDecay()

BKstarGammaDecay::BKstarGammaDecay	(	QCDOrder	order,
		double	matching_scale,
		double	hadronic_scale,
		ObservablePortsConfig &	ports
	)

inline

Definition at line 46 of file BKstarGammaDecay.h.

Member Function Documentation

◆ BR()

double BKstarGammaDecay::BR ( )

protected

Definition at line 179 of file BKstarGammaDecay.cpp.

◆ compute_observable() [1/2]

std::vector< ObservableValue > BKstarGammaDecay::compute_observable ( ObservableId obs )

overridevirtual

Compute an observable given an internal observable identifier.

Parameters

obs	Internal observable id.

Returns: One or more results as ObservableValue.

Implements DecayParent.

Definition at line 63 of file BKstarGammaDecay.cpp.

◆ compute_observable() [2/2]

std::vector< ObservableValue > BKstarGammaDecay::compute_observable ( Observables obs )

overridevirtual

Compute an observable given a public observable enum.

Parameters

obs	Observable enum id.

Returns: One or more results as ObservableValue.

Note: Some observables are binned; return multiple values or fill ObservableValue::bin.

Implements DecayParent.

Definition at line 37 of file BKstarGammaDecay.cpp.

◆ delta_0()

double BKstarGammaDecay::delta_0 ( )

protected

Definition at line 187 of file BKstarGammaDecay.cpp.

◆ fill_wilson_cache()

void BKstarGammaDecay::fill_wilson_cache ( )

protected

Definition at line 67 of file BKstarGammaDecay.cpp.

◆ get_config()

std::any BKstarGammaDecay::get_config ( ) const

inlineoverridevirtual

Return the current decay configuration when the decay has one.

The base implementation returns an empty std::any. Configurable decays that keep runtime options, such as form-factor source or internal thread count, override this so ObservableInterface worker clones can reproduce the same physics setup as the parent interface.

Reimplemented from DecayParent.

Definition at line 56 of file BKstarGammaDecay.h.

◆ H_V()

complex_t BKstarGammaDecay::H_V	(	double	sign,
		bool	bar
	)

protected

Definition at line 138 of file BKstarGammaDecay.cpp.

◆ K1()

complex_t BKstarGammaDecay::K1 ( )

protected

Definition at line 151 of file BKstarGammaDecay.cpp.

◆ K2()

complex_t BKstarGammaDecay::K2 ( int q )

protected

Definition at line 165 of file BKstarGammaDecay.cpp.

◆ load_cfg_dependent_params()

void BKstarGammaDecay::load_cfg_dependent_params ( )

protected

Definition at line 105 of file BKstarGammaDecay.cpp.

◆ load_params()

void BKstarGammaDecay::load_params ( )

overridevirtual

Load and cache parameters needed by this decay.

Derived classes should read all relevant inputs through the proxies (e.g. p, w_proxy, iobs_qcdp) and store them internally.

This is called by enable after Wilson has been built and the proxy is ready.

Implements DecayParent.

Definition at line 5 of file BKstarGammaDecay.cpp.

◆ set_cfg_flags()

void BKstarGammaDecay::set_cfg_flags ( BKstarGammaConfig::B_Charge charge )

protected

Definition at line 131 of file BKstarGammaDecay.cpp.

◆ set_config_spe()

void BKstarGammaDecay::set_config_spe ( BKstarGammaConfig config )

inlineoverridevirtual

Strongly-typed configuration setter to implement in derived classes.

Parameters

config Parsed configuration object.

Implements DecayParentConfigurable< BKstarGammaConfig >.

Definition at line 55 of file BKstarGammaDecay.h.

The documentation for this class was generated from the following files:

/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/BusinessLogic/domain/Decays/BKstarGammaDecay.h
/home/runner/work/Hyperiso/Hyperiso/Hyperiso/Hyperiso/core/src/BusinessLogic/domain/Decays/BKstarGammaDecay.cpp
