SparseMatrix.h File Reference

#include <iostream>
#include <map>
#include <string>
#include <vector>
#include <stdexcept>

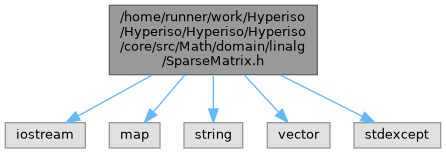

Include dependency graph for SparseMatrix.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	SparseMatrixWrapper< T >

Typedefs
template<typename T >
using	SparseMatrix = std::map< std::pair< T, T >, double >
	Alias for a sparse matrix using a map of coordinate pairs.

Functions
template<typename T >
std::vector< T >	getDiagonalElements (const SparseMatrix< T > &matrix)
	Extracts the diagonal elements from a sparse matrix.
template<typename T >
SparseMatrix< T >	createIdentityMatrix (const std::vector< T > &indices)
	Creates an identity matrix from a list of indices.
template<typename T >
double	getElement (const SparseMatrix< T > &matrix, const T &row, const T &col)
	Retrieves an element from the sparse matrix.
template<typename T >
void	setElement (SparseMatrix< T > &matrix, const T &row, const T &col, double value)
	Sets or updates an element in the sparse matrix.
template<typename T >
SparseMatrix< T >	invertMatrix (const SparseMatrix< T > &matrix, const std::vector< T > &indices)
	Inverts a square sparse matrix using Gauss-Jordan elimination.
template<typename T >
std::pair< SparseMatrix< T >, std::vector< T > >	removeEmptyRowsAndCols (const SparseMatrix< T > &matrix, const std::vector< T > &indices)
	Removes rows and columns that are entirely zero (i.e., not present in the sparse matrix).
template<typename T >
void	printMatrix (const SparseMatrix< T > &matrix, const std::vector< T > &indices)
	Prints the matrix in dense form using a list of indices.
template<typename T >
void	customPrintMatrix (const SparseMatrix< T > &matrix, const std::vector< T > &indices)
	Prints the matrix in a formatted grid with row and column headers.

Typedef Documentation

SparseMatrix

template<typename T >

using SparseMatrix = std::map<std::pair<T, T>, double>

Alias for a sparse matrix using a map of coordinate pairs.

Template Parameters

T	Type of the row and column indices.

Definition at line 16 of file SparseMatrix.h.

Function Documentation

createIdentityMatrix()

template<typename T >

SparseMatrix< T > createIdentityMatrix

(

const std::vector< T > &

indices

)

Creates an identity matrix from a list of indices.

Template Parameters

T	Index type.

Parameters

indices

List of row/column indices.

Returns

Sparse identity matrix.

Definition at line 44 of file SparseMatrix.h.

customPrintMatrix()

template<typename T >

void customPrintMatrix	(	const SparseMatrix< T > &	matrix,
		const std::vector< T > &	indices
	)

Prints the matrix in a formatted grid with row and column headers.

Template Parameters

T	Index type (must support std::ostream << operator).

Parameters

matrix	Sparse matrix.
indices	List of row/column indices.

Definition at line 206 of file SparseMatrix.h.

getDiagonalElements()

template<typename T >

std::vector< T > getDiagonalElements

(

const SparseMatrix< T > &

matrix

)

Extracts the diagonal elements from a sparse matrix.

Template Parameters

T	Index type.

Parameters

matrix

The sparse matrix.

Returns

Vector of diagonal indices.

Definition at line 26 of file SparseMatrix.h.

getElement()

template<typename T >

double getElement	(	const SparseMatrix< T > &	matrix,
		const T &	row,
		const T &	col
	)

Retrieves an element from the sparse matrix.

Template Parameters

T	Index type.

Parameters

matrix	The sparse matrix.
row	Row index.
col	Column index.

Returns

Value of the element (0.0 if not present).

Definition at line 62 of file SparseMatrix.h.

invertMatrix()

template<typename T >

SparseMatrix< T > invertMatrix	(	const SparseMatrix< T > &	matrix,
		const std::vector< T > &	indices
	)

Inverts a square sparse matrix using Gauss-Jordan elimination.

Template Parameters

T	Index type.

Parameters

matrix	Input square sparse matrix.
indices	List of row/column indices (must match matrix size).

Returns

Inverted matrix.

Exceptions

std::runtime_error

if the matrix is singular.

Definition at line 98 of file SparseMatrix.h.

printMatrix()

template<typename T >

void printMatrix	(	const SparseMatrix< T > &	matrix,
		const std::vector< T > &	indices
	)

Prints the matrix in dense form using a list of indices.

Template Parameters

T	Index type.

Parameters

matrix	Sparse matrix.
indices	List of indices to determine order.

Definition at line 189 of file SparseMatrix.h.

removeEmptyRowsAndCols()

template<typename T >

std::pair< SparseMatrix< T >, std::vector< T > > removeEmptyRowsAndCols	(	const SparseMatrix< T > &	matrix,
		const std::vector< T > &	indices
	)

Removes rows and columns that are entirely zero (i.e., not present in the sparse matrix).

Template Parameters

T	Index type.

Parameters

matrix	The input sparse matrix.
indices	The input list of row/column indices.

Returns

A pair containing:

• The cleaned sparse matrix.
• The updated list of indices.

Definition at line 142 of file SparseMatrix.h.

setElement()

template<typename T >

void setElement	(	SparseMatrix< T > &	matrix,
		const T &	row,
		const T &	col,
		double	value
	)

Sets or updates an element in the sparse matrix.

Template Parameters

T	Index type.

Parameters

matrix	Sparse matrix to modify.
row	Row index.
col	Column index.
value	Value to assign.

Definition at line 80 of file SparseMatrix.h.
